How to Rotate Tires at Home (Step-by-Step Pattern Guide)

AdultingMedium8:398 stepsBrowse more →

By ShowMeStepByStepPublished

Based on a video by Ratchets And Wrenches.

A new set of tires costs $600 to $1,200. Rotating them every 5,000 miles - which takes about an hour in your driveway - can double how long they last. That is real money saved for an afternoon of work. The job uses a floor jack, four jack stands, and a torque wrench, all of which you can buy once and use for the next ten years of car maintenance.

Safety first. Never crawl under a car supported only by a jack. Always use jack stands at the manufacturer's lift points. Always chock the wheels staying on the ground. Always loosen the lug nuts before you lift the car off the ground - trying to crack a stuck lug nut loose with the wheel in the air just spins the tire and stresses the jack. Skip any of these and a tipped jack can kill you. There is no version of this job that is worth that.

The one step every other video skips. Most tire-rotation videos show you the FWD or RWD pattern and stop there. The pattern alone is not enough. After four normal rotations using any standard pattern, the outside edge of each tire has stayed on the outside of the wheel the whole time. On a front-wheel drive car, that outside edge is exactly where the heaviest wear happens (from cornering loads). To even out the wear properly, every other rotation you need to dismount the tires from the wheels and flip them so the inside becomes the outside. You cannot do this in your driveway. Pull the wheels off, mark which tire goes where, and take all four to a tire shop. They will flip them on the wheels for a few bucks per tire - way less than the cost of replacing tires 20,000 miles too early.

This walkthrough from Ratchets And Wrenches covers the prerequisites, all three drivetrain patterns (FWD, RWD, AWD/4WD), the actual rotation procedure, and the dismount-and-flip step you have probably never heard of. Set aside 90 minutes the first time, an hour after that.

While you are working on the wheels, also worth knowing: how to check brake pads, how to check tire pressure, how to replace a car battery, and how to replace the cabin air filter.

Step-by-Step Guide

1

Step 1: Check Steering and Suspension First

0:20
Step 1: Step 1: Check Steering and Suspension First

Before you rotate anything, look over your steering and suspension components. Check for play in the inner and outer tie rods, the upper and lower ball joints, the shocks or struts, and the bushings. A worn component on one corner is already chewing up that one tire. If you rotate a worn tire onto the bad corner, you end up with two damaged tires - then three, then four.

Get the bad component fixed first, then rotate. Same goes for alignment. If your alignment is off, no rotation pattern will save you - you will just smear the bad wear across all four tires evenly. Inspect, fix, then rotate.

Tip

A quick play check: grab each front tire at 9 and 3 o'clock and try to rock it side-to-side. Any clunk or play means worn tie rod ends. Then grab at 12 and 6 - play there points to bad ball joints or wheel bearings.

2

Step 2: Check if Your Tires Are Directional

1:00
Step 2: Step 2: Check if Your Tires Are Directional

Most cars have non-directional tires, but performance tires, summer tires, and snow tires are often directional. Look at the sidewall for an arrow and the word ROTATION, or check the tread pattern - directional tires have V-shaped grooves pointing one way for water drainage.

If your tires are directional, they can only be rotated front-to-back on the same side of the car. You cannot move a directional tire to the opposite side without dismounting it from the wheel and remounting it. Driving a directional tire mounted backwards is loud, dangerous in the rain, and pointless.

Tip

If the V-shape of the tread points DOWN as the tire rolls forward (like an upside-down arrow), the tire is mounted correctly. If it points up, someone mounted it wrong - take it back.

Products used in this step

3

Step 3: Check Front and Rear Tire Sizes Match

1:15
Step 3: Step 3: Check Front and Rear Tire Sizes Match

Before rotating, read the tire size printed on each sidewall. Do not trust what the owner's manual says - someone may have put a different size tire on at a previous service. Compare the sidewall numbers on all four tires.

If the front and rear sizes differ (common on some sports cars, or on cars where someone only replaced the rears), you cannot do a front-to-back rotation at all. You can only swap left-to-right within the same axle. Forcing different sizes between front and rear causes drivability problems and possible drivetrain damage on AWD cars - the differential burns up trying to compensate for the size mismatch.

Tip

Tire sizes look like this: 225/45R17. The first number is width in mm, the middle number is sidewall height as a percent of width, and the last number is wheel diameter in inches. All four should match for a normal rotation.

4

Step 4: Pick the Right Pattern - FWD, RWD, or AWD

2:25
Step 4: Step 4: Pick the Right Pattern - FWD, RWD, or AWD

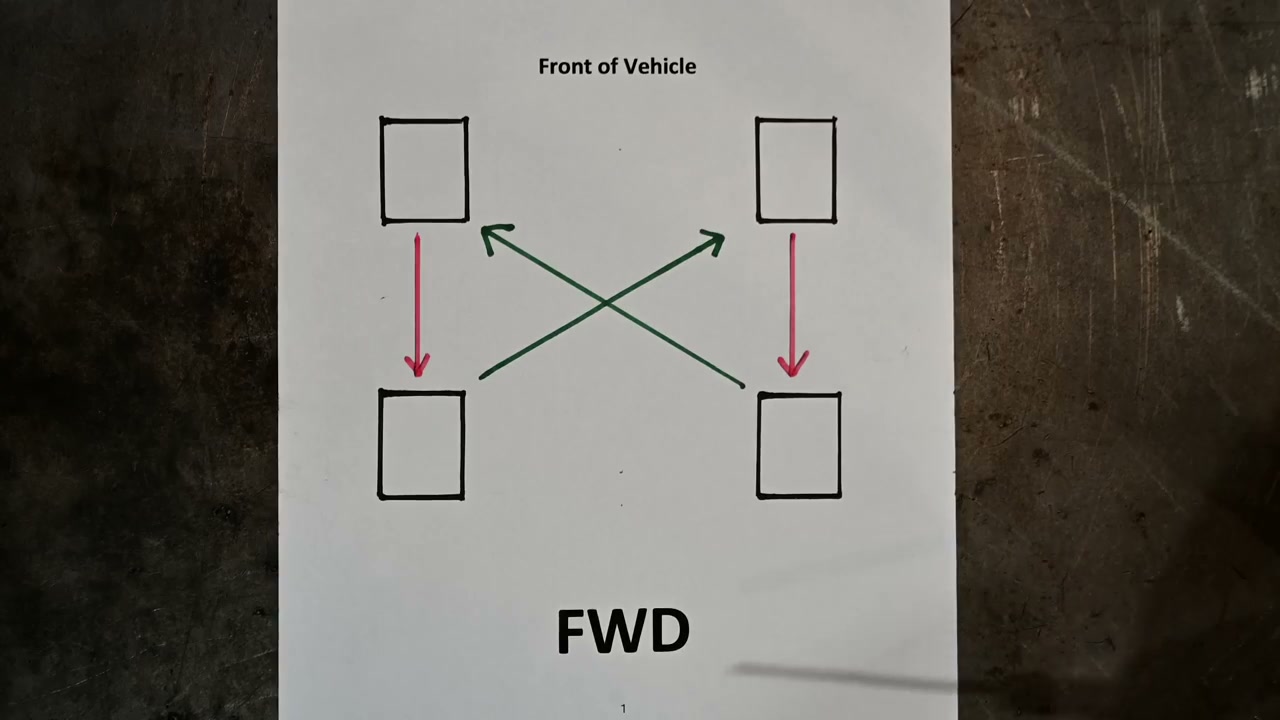

Each drivetrain has its own pattern. On a front-wheel drive car, move the front tires straight to the back, then crisscross the rear tires up to the front. On a rear-wheel drive car, reverse it - move the rears straight to the front and crisscross the fronts to the back.

On AWD or 4WD, use the rear-wheel drive pattern (rears straight forward, fronts crisscross to back). Do NOT use the simple left-right swap some people recommend for AWD - that pattern keeps two tires permanently up front and two permanently in the back, which defeats the whole point of rotating. Every tire needs to visit every corner over time.

Tip

If you do not know your drivetrain, look at the badge on the back of the car or check the owner's manual. FWD is the default for most economy cars and minivans. RWD is most pickup trucks and sports cars. AWD/4WD is most SUVs and any car with quattro, xDrive, AWD, or 4MATIC badges.

Products used in this step

5

Step 5: Rotate Every 5,000 to 7,000 Miles

3:45
Step 5: Step 5: Rotate Every 5,000 to 7,000 Miles

Most tire manufacturers recommend rotating every 5,000 to 7,000 miles. Stick to 5,000 miles if you want a number to put on the calendar. Many DIYers rotate at every oil change, which is close enough for most modern cars on a 5,000-mile oil interval.

Mark the date and mileage in your phone or in the maintenance log so you actually do it. The whole point of rotation is even wear across all four tires over time, and that only works if you stay on a schedule. Skipping rotations is the number-one reason people end up replacing tires at 30,000 miles instead of 50,000 - the front pair wears down to bald while the rears still have half their life.

Tip

Set a recurring reminder in your phone that fires every six months. Six months times 1,000 miles per month average driving lands right around 6,000 miles - close enough for tire rotation purposes.

6

Step 6: Lift Safely With Jack Stands - Never Just a Jack

4:23
Step 6: Step 6: Lift Safely With Jack Stands - Never Just a Jack

Chock the wheels that will stay on the ground - one chock in front, one behind. Loosen each lug nut about a quarter turn while the car is still on the ground. Trying to crack a stuck lug nut loose with the wheel in the air just spins the tire and stresses the jack.

Slide the floor jack under the manufacturer's lift point (check the owner's manual - usually a reinforced pinch weld behind the front wheels or in front of the rear wheels). Lift one corner, set a jack stand under the frame or at a rated lift point, then lower the car onto the stand. A hydraulic floor jack is for lifting, not for holding - never crawl or work under a car held up only by a jack.

Tip

3-ton jack stands are the minimum for a passenger car or small SUV. 6-ton stands cost about $20 more and are worth it if you also work on trucks or larger SUVs. Buy them once and they last forever.

7

Step 7: Swap the Tires According to Your Pattern

4:05
Step 7: Step 7: Swap the Tires According to Your Pattern

With the car safely on jack stands, pull each wheel off and move it to its new position according to the pattern you chose in step 4. Roll the tires rather than carrying them - they weigh 30 to 60 pounds each and rolling saves your back.

Hand-thread every lug nut a few turns before using a wrench to make sure none cross-thread. Snug them in a star pattern (top, bottom, side, opposite side, then the rest) so the wheel sits flat against the hub. Lower the car back onto its tires, then torque the lug nuts to the spec in your owner's manual - usually 80 to 100 ft-lb for passenger cars, 100 to 140 ft-lb for trucks. Always finish with a real torque wrench. Over-tightened lug nuts warp rotors and snap studs; under-tightened lug nuts kill people.

Tip

If you are using an impact wrench, switch to the torque wrench for the final tighten. Impact wrenches do not give consistent torque readings, and over-torquing with one is the most common DIY mistake on this job.

8

Step 8: Flip the Tires on the Wheels Every Other Rotation

6:20
Step 8: Step 8: Flip the Tires on the Wheels Every Other Rotation

This is the step almost every other tire-rotation video skips. After four rotations using a normal pattern, the outside edge of each tire has stayed on the outside of the wheel the whole time. On a front-wheel drive car, that outside edge is exactly where cornering forces wear the tire fastest. To even out the wear, every other rotation you need to dismount the tires from the wheels and flip them so the inside edge becomes the outside.

You cannot do this in your driveway without a tire machine. Pull all four wheels off as normal, mark each tire with painter's tape so you remember which corner it came from, and take the wheels to a tire shop. They will mount each tire back on the wheel facing the opposite way for a few bucks per tire. Way less than buying a new set of tires 20,000 miles too early.

Tip

This dismount-and-flip step only applies to non-directional tires. If your tires are directional (step 2), the tread is designed to face one direction only and flipping them would make them dangerous in the rain. On directional tires, the rotation pattern is all you can do.

Products Used

☐ The Checklist

How to Rotate Tires at Home (Step-by-Step Pattern Guide)

Tools
7
Steps
8
Video
9 min

Your Guide

Ratchets And Wrenches
